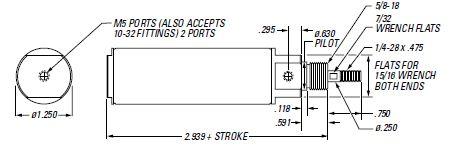

Part #: E24X–.–U
STROKE
Air extend, spring return
Strokes: 0.5–1.0 –1.5–2.0
Universal mount includes:
• Rear pivot mount
• Front, rear stud mount

RESET SPRING FORCE FOR SINGLE ACTING UNITS ( lbs.)

Stroke	0.5	1.0	1.5	2.0
Rod Extended	.32	.32	.32	.32
Rod Retracted	.32	.28	.26	.24

Part #: E24X–.–N
STROKE
Air extend, spring return
Strokes: 0.5–1.0 –1.5–2.0
Front stud mount

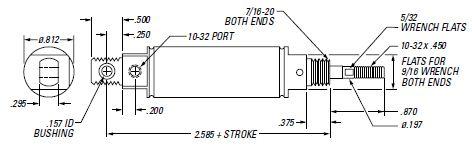

Part #: E16X–.–U
STROKE
Air extend, spring return
Strokes: 0.5–1.0 –1.5–2.0
Universal mount includes:
• Rear pivot mount
• Front, rear stud mount

RESET SPRING FORCE FOR SINGLE ACTING UNITS ( lbs.)

Stroke	0.5	1.0	1.5	2.0
Rod Extended	.25	.25	.25	.25
Rod Retracted	.22	.20	.17	.15

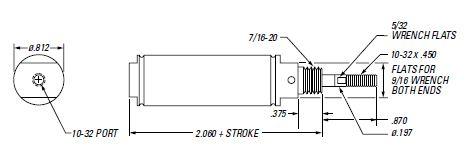

Part #: E16X–.–N
STROKE
Air extend, spring return
Strokes: 0.5–1.0 –1.5–2.0
Front stud mount

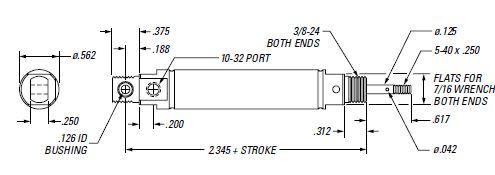

Part #: E9X–.–U
STROKE
Air extend, spring return
Strokes: 0.5–1.0 –1.5
Universal mount includes:
• Rear pivot mount
• Front, rear stud mount

RESET SPRING FORCE FOR SINGLE ACTING UNITS (lbs.)

Stroke	0.5	1.0	1.5
Rod Extended	.17	.17	.17
Rod Retracted	.12	.08	.05

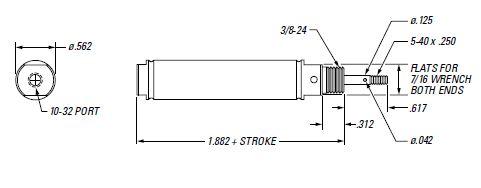

Part #: E9X–.–N
STROKE
Air extend, spring return
Strokes: 0.5–1.0 –1.5
Front stud mount

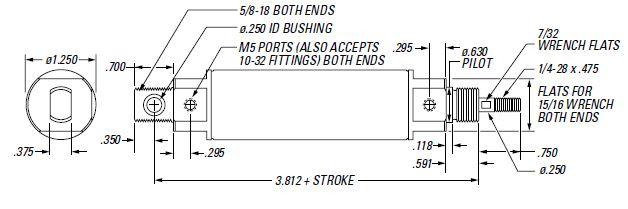

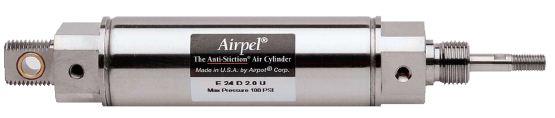

Part #: E24D–.–U
STROKE
Strokes:
0.5–1.0–1.5–2.0–
3.0 –4.0–5.0–6.0–7.0–
8.0–9.0–10.0–11.0–12.0
Universal mount includes:
• Rear pivot mount
• Front, rear stud mount

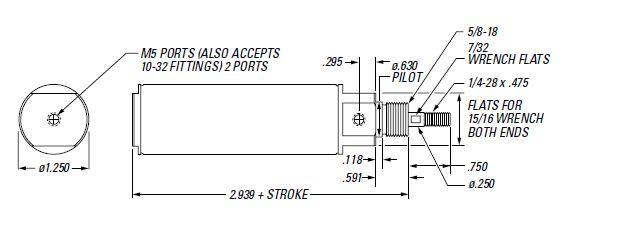

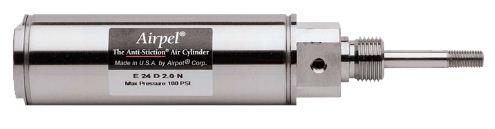

Part #: E24D–.–N
STROKE
Strokes:
0.5–1.0–1.5–2.0–
3.0 –4.0–5.0–6.0–7.0–
8.0–9.0–10.0–11.0–12.0
Front stud mount

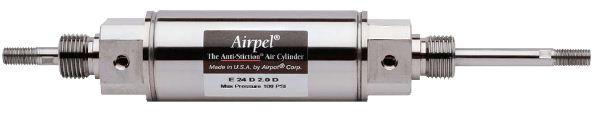

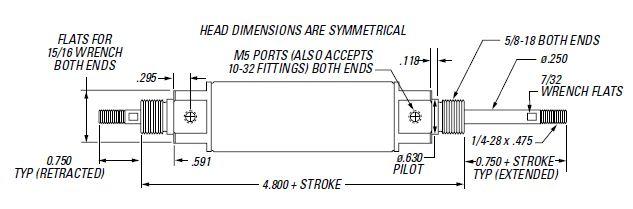

Part #: E24D–.–D
STROKE
Strokes:
0.5–1.0–1.5–2.0–
3.0 –4.0–5.0–6.0–7.0–
8.0–9.0–10.0–11.0
Double rod end

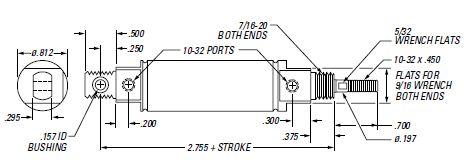

Part #: E16D–.–U
STROKE
Strokes:
0.5–1.0–1.5–2.0–
3.0 –4.0–5.0–6.0–7.0–
8.0–9.0–10.0–11.0–12.0
Universal mount includes:
• Rear pivot mount
• Front, rear stud mount

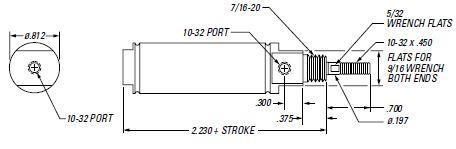

Part #: E16D–.–N
STROKE
Strokes:
0.5–1.0–1.5–2.0–
3.0 –4.0–5.0–6.0–7.0–
8.0–9.0–10.0–11.0–12.0
Front stud mount

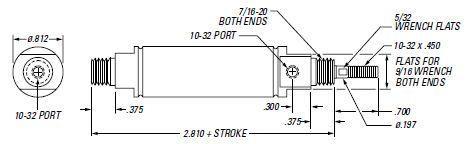

Part #: E16D–.–S
STROKE
Strokes:
0.5–1.0–1.5–2.0–
3.0 –4.0–5.0–6.0–7.0–
8.0–9.0–10.0–11.0–12.0
Front, rear stud mount

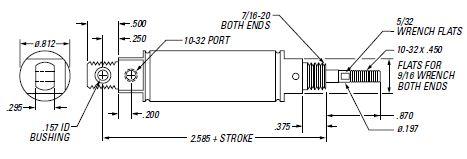

Part #: E16D–.–D
STROKE
Strokes:
0.5–1.0–1.5–2.0–
3.0 –4.0–5.0–6.0–7.0–
8.0–9.0–10.0–11.0–12.0
Double rod end

Model E9
