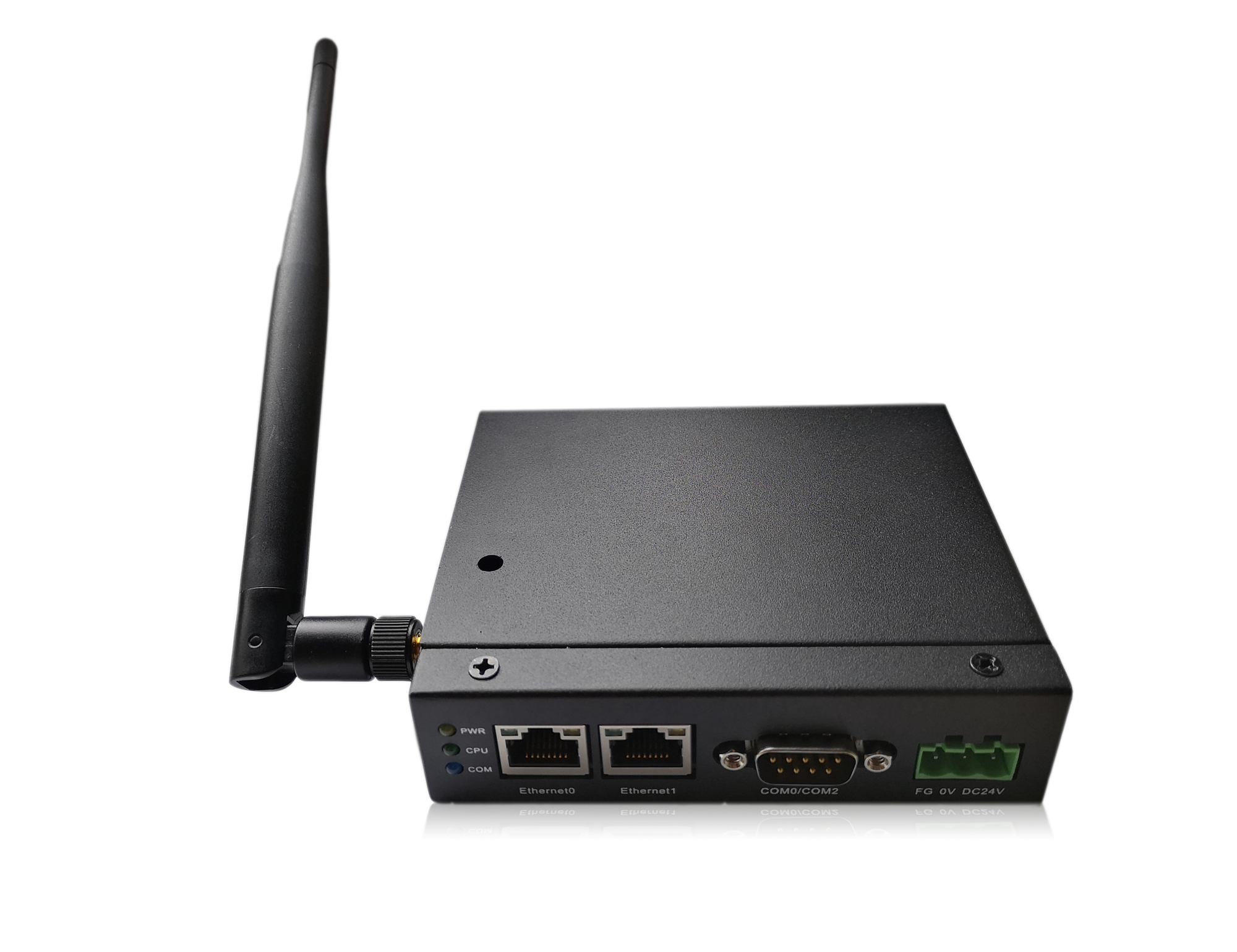

GW01-WiFi
-
Freescale industrial-grade CPU, clocked at 800MHz, memory up to 128M
-
Dual network ports + COM port communication, can connect hundreds of mainstream controllers without changing the existing architecture
-
DTools software is simple to configure, powerful functions to easily realize data mapping, and transfer device data to the cloud
-
Choice of WiFi wireless communication or 4G module communication to adapt to different usage scenarios
-
Small size, easy to install (DIN rail installation)
SPECIFICATION
Performance Specification
Structure specification
processor
Memory
RTC
Ethernet
WiFi
4G
USB
Program download
Wi-Fi/ wireless network
frequency band
VPN
Communication port
Program download
Memory
RTC
Ethernet
WiFi
4G
USB
Program download
Wi-Fi/ wireless network
frequency band
VPN
Communication port
Program download
ARM RISC 32Bit 800MHz
128MB NAND flash + 128MB DDR3 memory
1*USB Slave
USB Slave (Micro USB)/Network port/WiFi
LTE-FDD Band 1/3/5/8, LTE-TDD Band 38/39/40/41UMTS Band 1/8,
GSM Band 3/8
Support box remote upload, download and online monitoring, support PLC transparent transmission program upload, download and online debugging
COM0: PLC RS232/RS422/RS485; COM2: PC/PLC RS232
USB Slave/U Disk/Network Port
128MB NAND flash + 128MB DDR3 memory
Built-in real time clock
2*10/100M adaptive network port
IEEE802.11 b/g/n 802.11b:max 17dBm 802.11g:max 17dBm 802.11n:max 17dBm
no2*10/100M adaptive network port
IEEE802.11 b/g/n 802.11b:max 17dBm 802.11g:max 17dBm 802.11n:max 17dBm
1*USB Slave
USB Slave (Micro USB)/Network port/WiFi
LTE-FDD Band 1/3/5/8, LTE-TDD Band 38/39/40/41UMTS Band 1/8,
GSM Band 3/8
Support box remote upload, download and online monitoring, support PLC transparent transmission program upload, download and online debugging
COM0: PLC RS232/RS422/RS485; COM2: PC/PLC RS232
USB Slave/U Disk/Network Port
Shell color
Shell material
Dimensions
Installation method
Weight
Shell material
Dimensions
Installation method
Weight
black
metal
111.6mm*93.6mm*30mm
DIN rail installation (35mm)
0.31Kg
metal
111.6mm*93.6mm*30mm
DIN rail installation (35mm)
0.31Kg
Electrical Specification
Environmental Specification
Input range
Power
Allowable loss of power
Insulation resistance
Hi-pot test
Power
Allowable loss of power
Insulation resistance
Hi-pot test
DC12V～DC28V, built-in isolated power supply
1.5W
<3ms
More than 50MΩ@500V DC
500V AC for 1 minute
1.5W
<3ms
More than 50MΩ@500V DC
500V AC for 1 minute
Working temperature
Working humidity
Storage temperature
Storage humidity
Sine vibration test
Cooling mode
Working humidity
Storage temperature
Storage humidity
Sine vibration test
Cooling mode
-10～55℃
10~90%RH (non-condensing)
-20~60℃
10~90%RH (non-condensing)
10～25Hz (X, Y, Z direction 2G/30 minutes)
Natural air cooling
10~90%RH (non-condensing)
-20~60℃
10~90%RH (non-condensing)
10～25Hz (X, Y, Z direction 2G/30 minutes)
Natural air cooling
certified product
Software
Meet IP20
Comply with CE certification
Comply with CE certification
Conforming to IP65 certification (4208-93)
CE: EN61000-6-4:2007+A1:2011，EN61000-6-2:2005
CE: EN61000-6-4:2007+A1:2011，EN61000-6-2:2005
Configuration software
Kinco DTools V3.4 and above
